flexographic printing machine for sale

A flexographic printing machine for sale is a printing machine that uses a flexible photopolymerized resin plate as the plate material, transmits ink through anilox rollers, and prints the substrate with liquid ink. It can print on various materials such as coated paper, cardboard, copy paper, self-adhesive, non-woven fabric, BOPP, PET plastic film, and so on. We usually use it in the printing fields of labels, multi-layer labels, cotton paper printing, plastic film, paper cups, paper boxes, food packaging, medical packaging, wrapping paper, and so on.

flexographic printing machine for sale Parameter

Model	Printing Width	Printing Length	Printing Speed	Plate Thickness	Machine Dimension
DX-2600	600mm	180-1200mm	60m/min	2.38m	2.3*1.6*2.2m
DX-2800	800mm	180-1200mm	60m/min	2.38m	2.3*1.8*2.2m
DX-21000	1000mm	180-1200mm	60m/min	2.38m	2.3*2.0*2.2m
DX-4600	600mm	180-1200mm	60m/min	2.38m	4.8*1.6*2.4m
DX-4800	800mm	180-1200mm	60m/min	2.38m	4.8*1.8*2.4m
DX-41000	1000mm	180-1200mm	60m/min	2.38m	4.8*2.0*2.4m
DX-6600	600mm	180-990mm	60m/min	2.38m	4.8*2.0*2.4m
DX-6800	800mm	180-990mm	60m/min	2.38m	4.8*1.8*2.8m
DX-61000	1000mm	180-990mm	60m/min	2.38m	4.8*2.0*2.8m

stack flexo printing machine Application

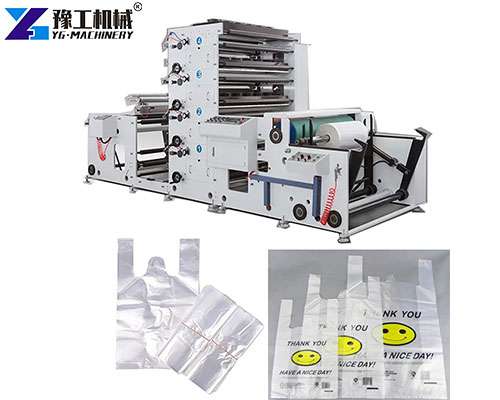

Flexographic printing machines can print on various materials, such as plastic bags, paper cups, paper, stickers, non-woven fabrics, BOPP, PET plastic film, labels, and many other materials.
Flexographic printing machine for sale has a wide range of applications in packaging printing, label printing, commercial printing, and other fields. Its wide range of material adaptability, efficient printing efficiency, and environmental protection make flexographic printing occupy an important position in the printing industry.

4 color flexographic printing machine Working Principle

Flexographic printing machine first to print text and images made of printing plates, mounted on the printing machine. Then the ink is applied manually or by the printing press to the place where the text and images are on the printing plate. Then transferred to paper or other substrates, thus reproducing the same print as the plate.

Working steps of 2 color flexo printing machine

1. Ink supply: Ink flows out of the ink hopper, passes through the hopper’s rubber rollers, and reaches the anilox rollers (anilox rollers for short).
2. Ink transfer: anilox rollers will uniformly transfer ink to the graphic part of the flexible printing plate. In the process of passing, the doctor blade and anilox rollers cooperate to ensure the uniform distribution of ink.
3. Printing process: ink will stain the graphic part of the flexible printing plate. And then comes into contact with the substrate (e.g. paper, plastic film, etc.). Formation of the desired graphic.
4. Drying process: after printing the substrate usually needs to be dried to ensure that the ink is firmly attached. Flexographic printing machine for sale presses often use a hot air drying device or UV drying device for drying treatment.

7 Features of Stack Flexo Printing Machine

1. Stable printing: a shoulder iron can support the printing plate roller. So it is stable and reliable, realizing high-precision and stable printing.
2. Quick change of plate roller: shoulder iron type structure realizes quick change of plate roller and printing pressure.
3. Quick change of anilox: open the anilox system, no need for any auxiliary tools to realize the quick change of anilox roller, ink lifting roller, and ink hopper box.
4. Automatic doctor blade adjustment: a specially designed doctor blade realizes automatic doctor blade pressure adjustment without manual pressure adjustment.
5. Short paper path design: ultra-short paper path length design, greatly reducing production losses.
6. Pre-register function: flexographic printing machine for sale adopts servo-driven mode, which has the function of pre-registering in the state of stopping and improves production efficiency.
7. Precise register: YG provides a flexo printing machine with a precise register, which can deliver qualified prints during acceleration or deceleration.

flexographic printing machine from YG

YG can provide you with great quality printing equipment, besides flexo printing machines, we produce gravure printing machines, PP woven bag printing machines, and digital printing machines. They are powerful enough to meet the printing on different materials. Our printing machines are of good quality, have stable operation, and have good printing effect. YG will recommend the right printing solution according to your specific needs. Please let us know your needs and get more information about our printing machines!
